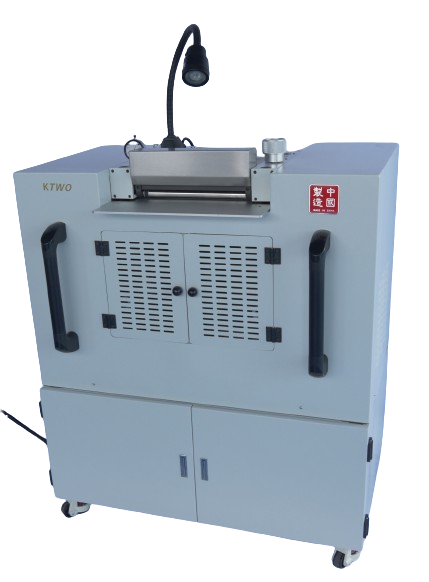

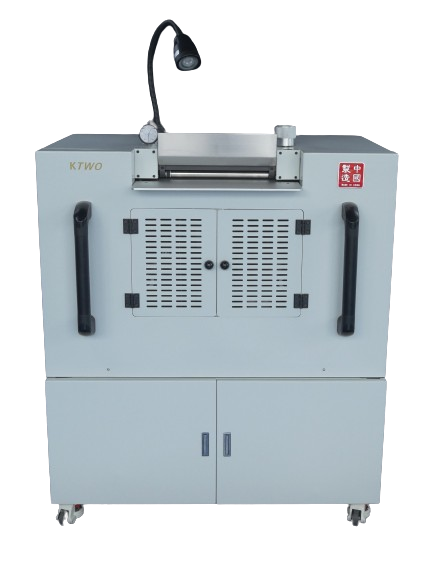

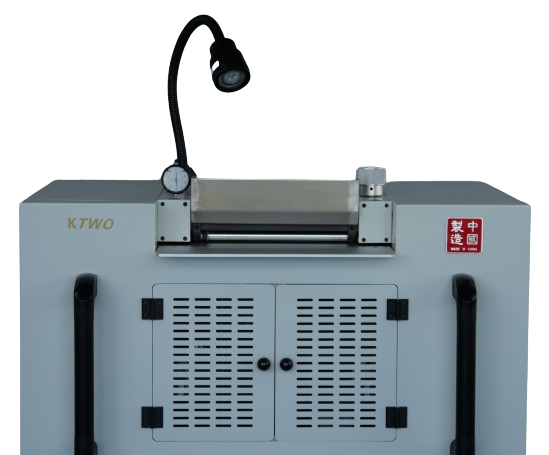

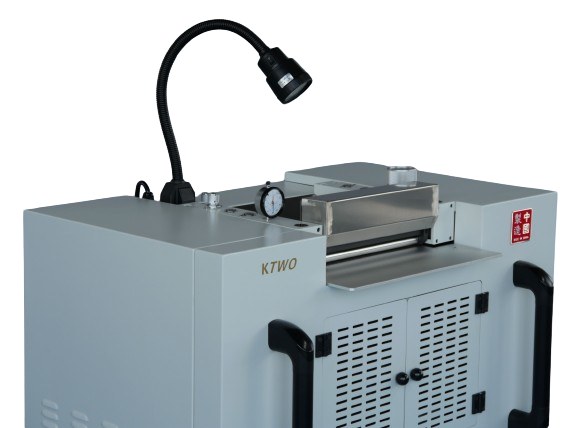

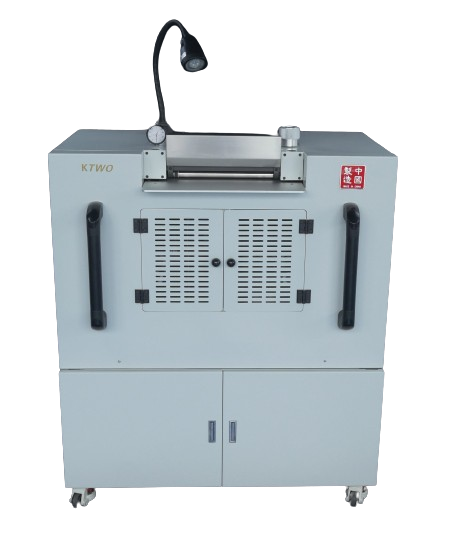

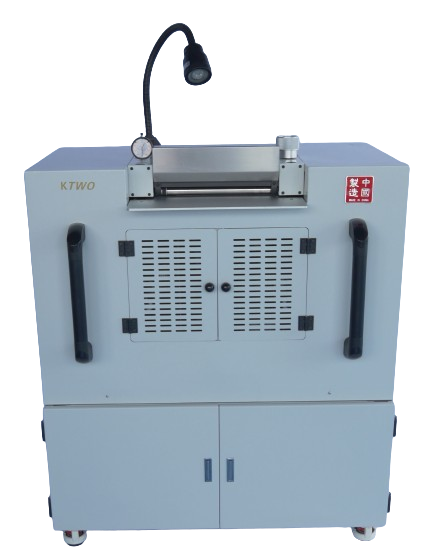

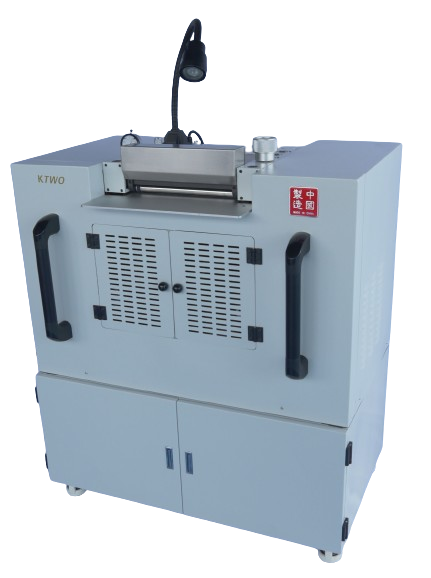

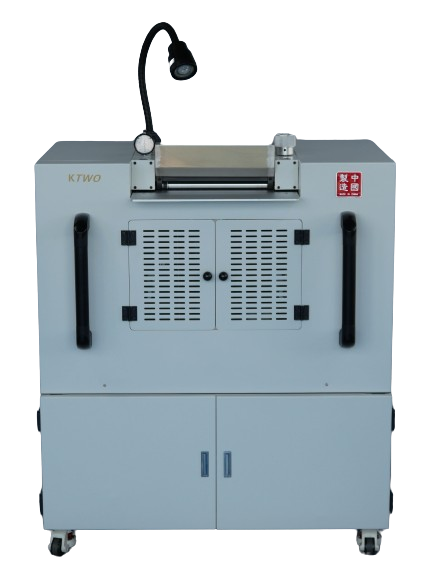

Model introduction

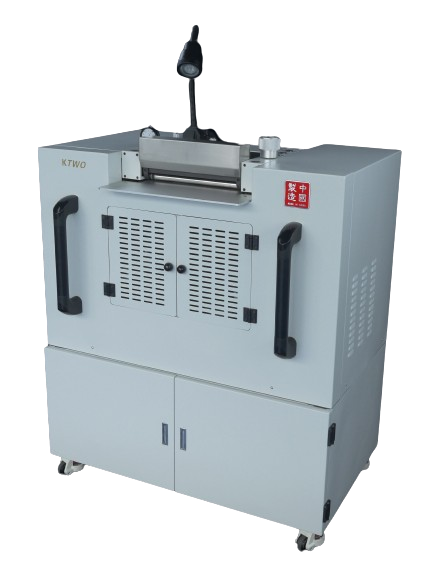

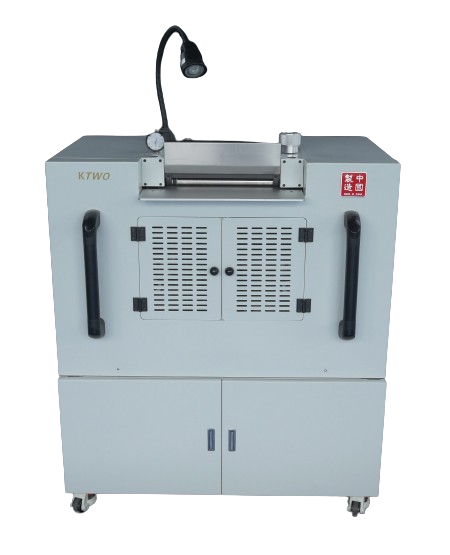

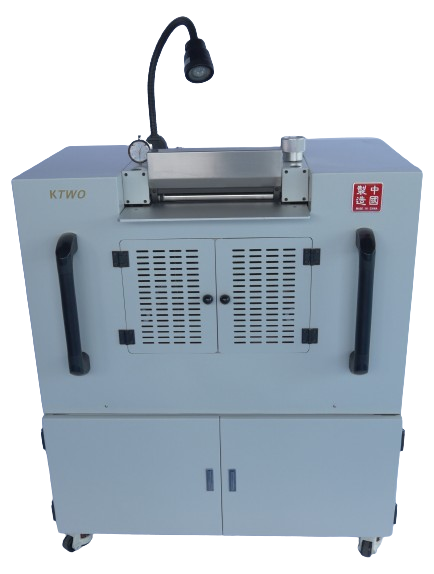

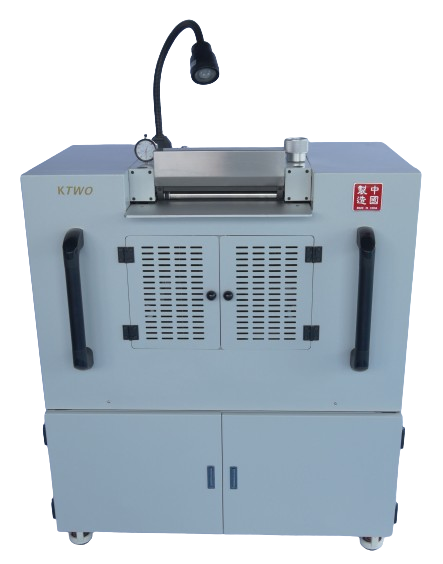

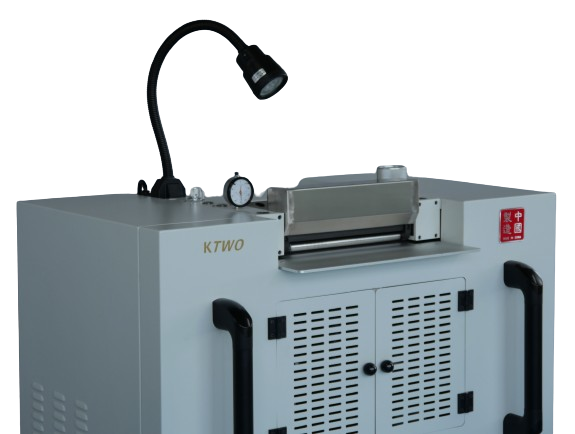

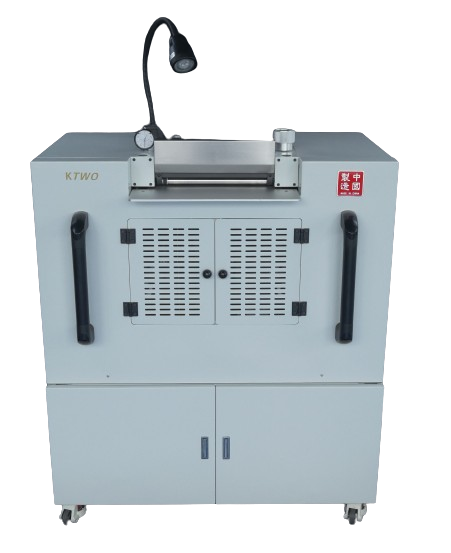

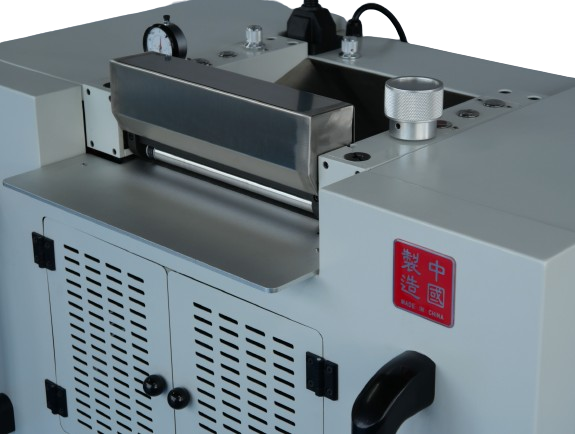

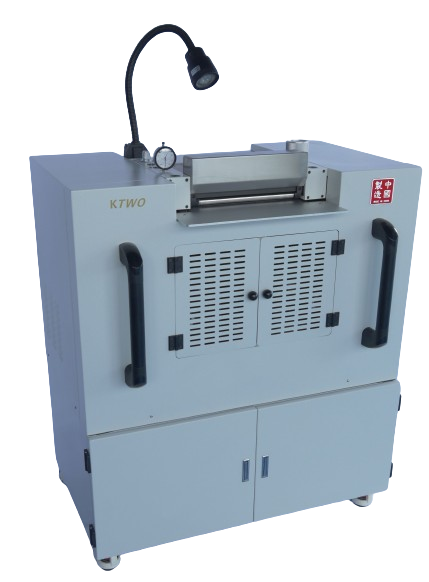

A heavy-duty model based on the K7546 model, specifically designed for precision thinning of some hard and thick leather materials. Independent upper roller powertrain. Having the ability to thin hard and thick leather materials. The original roller can be replaced to achieve simultaneous thinning on both sides.
Key features
● The body adopts integrated casting technology, which is smooth, stable and deformation free.
● Support uniform thinning of soft and hard genuine leather materials.
● Leather below 320mm can be uniformly thinned.
● The maximum sheet thickness is 8 millimeters, and the minimum sheet thickness is 0.6 millimeters.
● Equipped with a waste dust suction system, it can effectively remove waste dust and prevent material jamming.
● Independent sharpening and vacuuming control can minimize usage noise to the greatest extent possible according to needs.
● Small volume design can maximize space saving.
● Equipped with load-bearing wheels, it greatly facilitates the movement of the machine.
Technical parameters
|
Model K7546 重载型 |
|
|
Voltage |
220V |
|
Power |
1.6KW |
|
Working Size |
280mm |
|
Blade size |
2020*40*0.5 |
|
Feeding speed |
Infinite speed regulation |
|
Dimensions |
97*67*120cm |
|
Net weight of the whole machine |
296KG |
Optional
Feeding roller
Rubber wrapped feeding wheel
Special device for trimming belts
