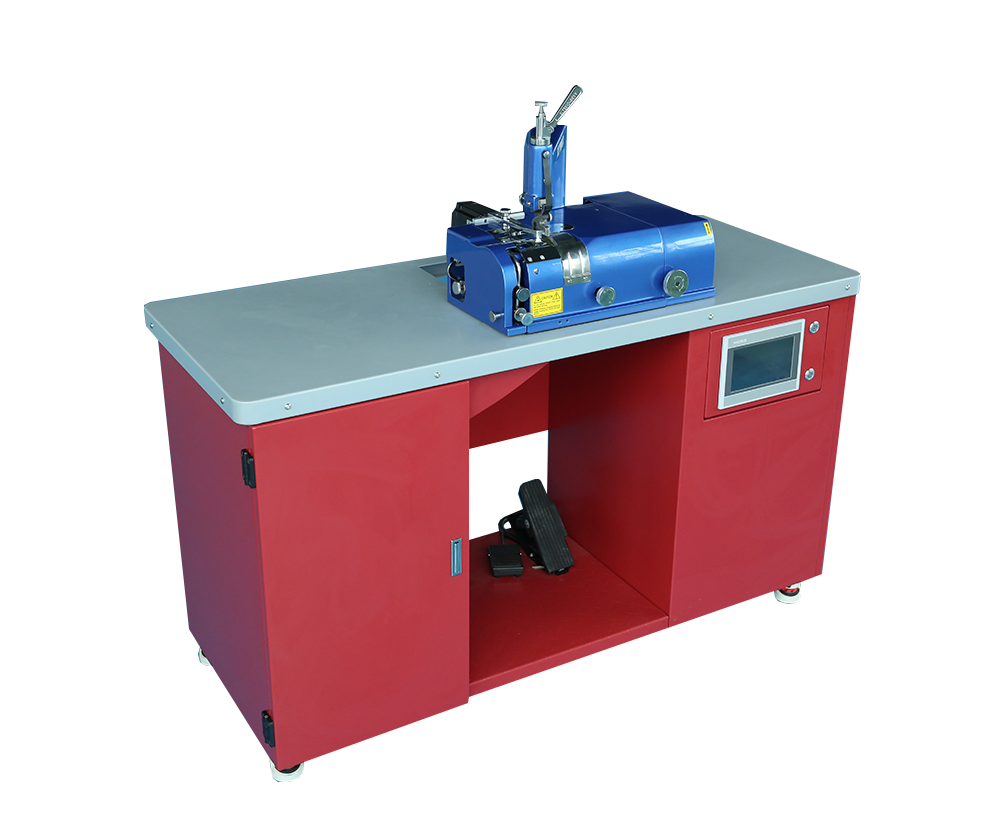

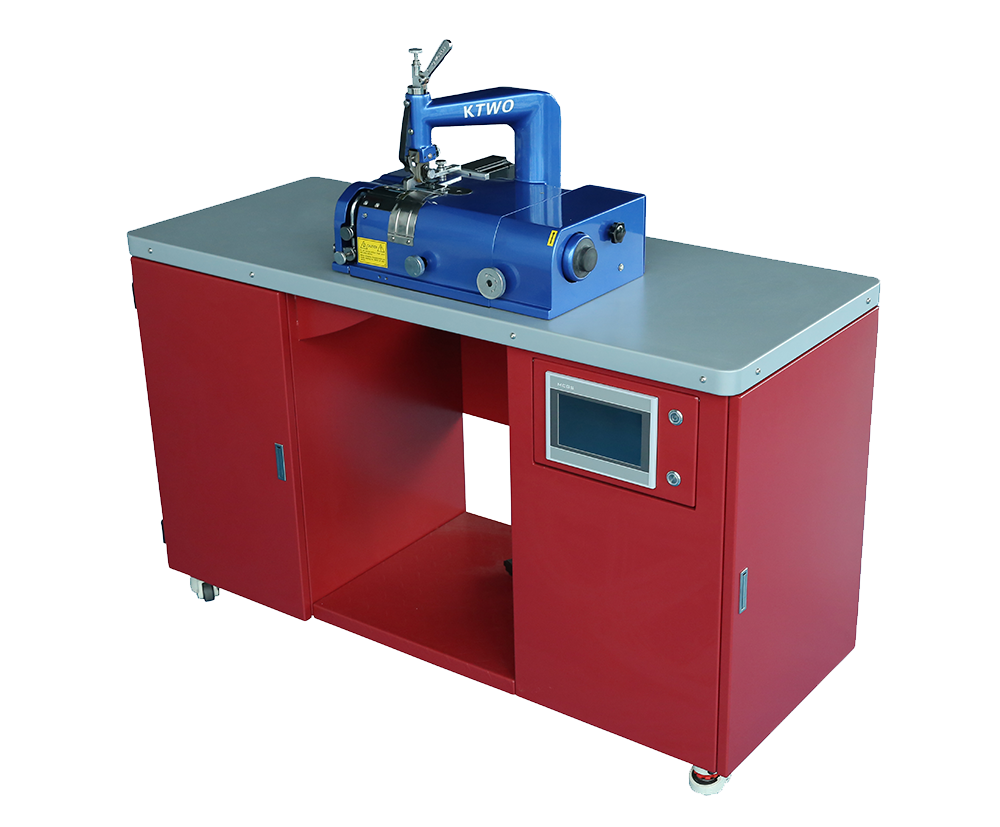

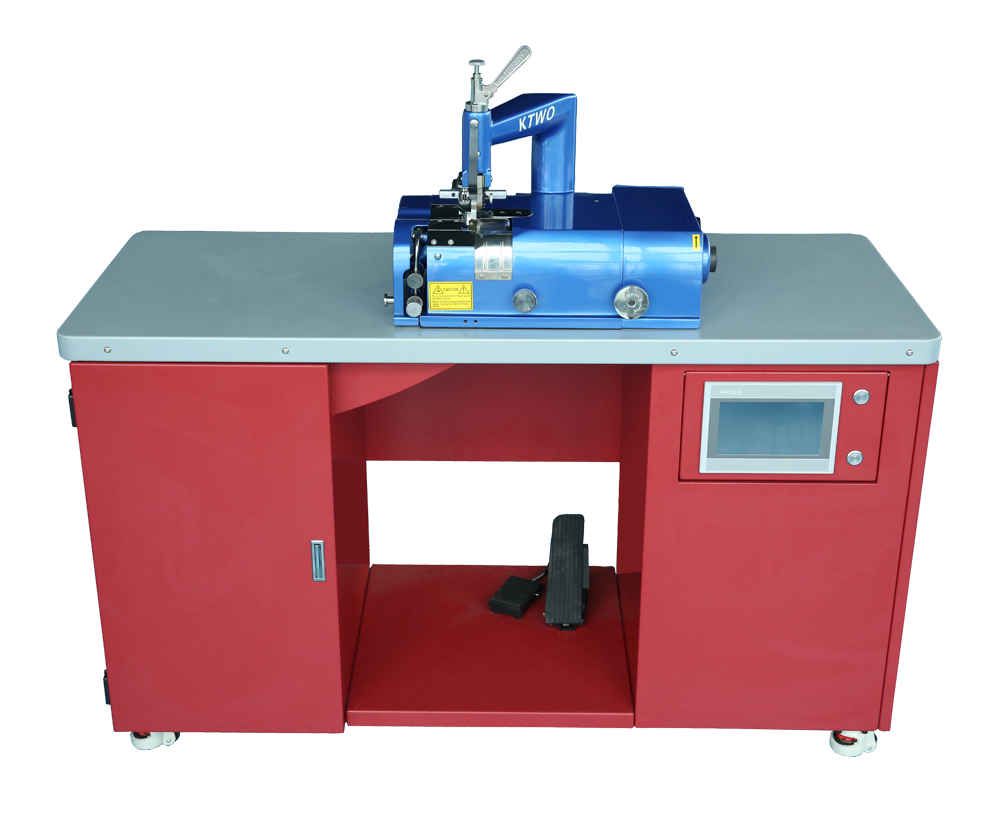

Model introduction
The K2C2-S model is the flagship model of the KTWO round knife thinning machine series, with a dual stepless speed regulation design that can handle thinning operations for various types of materials. Speed CNC control, easy and convenient to operate.
Key features
● Multifunctional touch screen, adopting storage design, with convenient, simple and efficient operation.
● Integrated body design, equipped with advanced servo feeding system, ensuring constant torque output for both high and low speed feeding.
● Equipped with a built-in vacuum function, it can effectively remove waste and dust, prevent material jamming, and ensure a clean usage environment.
● The whole machine parts adopt high-precision machining technology. Durable and low noise.
● Equipped with KTWO's pioneering edge trimming function, it can directly input the required length for precise edge trimming.
● KTWO autonomous control program, stable and reliable.
● Digital dual infinite speed regulation can handle thinning of various types of materials.
● 7-inch touch screen, user-friendly control interface. No work experience is required to operate.
● There are three operation modes: automatic mode, pedal mode, and jog mode, which can effectively handle the trimming of various shapes of materials.
● PLC control, with high precision and stability.
● Compatible with various special presser feet and modified accessories of KTWO, it can produce different edge thinning effects.
Technical parameters
|
Model K2C2-S |
|
|
Working voltage |
220V |
|
Model weight |
168KG |
|
Model power |
1.4KW |
|
Model size |
130*53*118（cm） |
|
Minimum thinning thickness |
0.05mm |
|
Drive form |
Dual drive type |
|
Maximum thinning width |
50mm |
Optional
Various special presser feet
Feeding slide table
K7546(Avocado Green)
K2C2-S（regular style）
K5355-S
Mini
K5276(Single-side edging machine)
Knife belt
Oil cotton clip
Feeding wheel
Feeding wheel
Downward pushing knife plate
Pushing knife plate
Pressure plate
Pushing knife plate
Top blade wheel
Axis of feeding wheel
Sharpening belt
Gauze roll
Sponge wheel
Nitto Presser foot skiving adhesive tape
Copper core PU rubber feeding wheel
