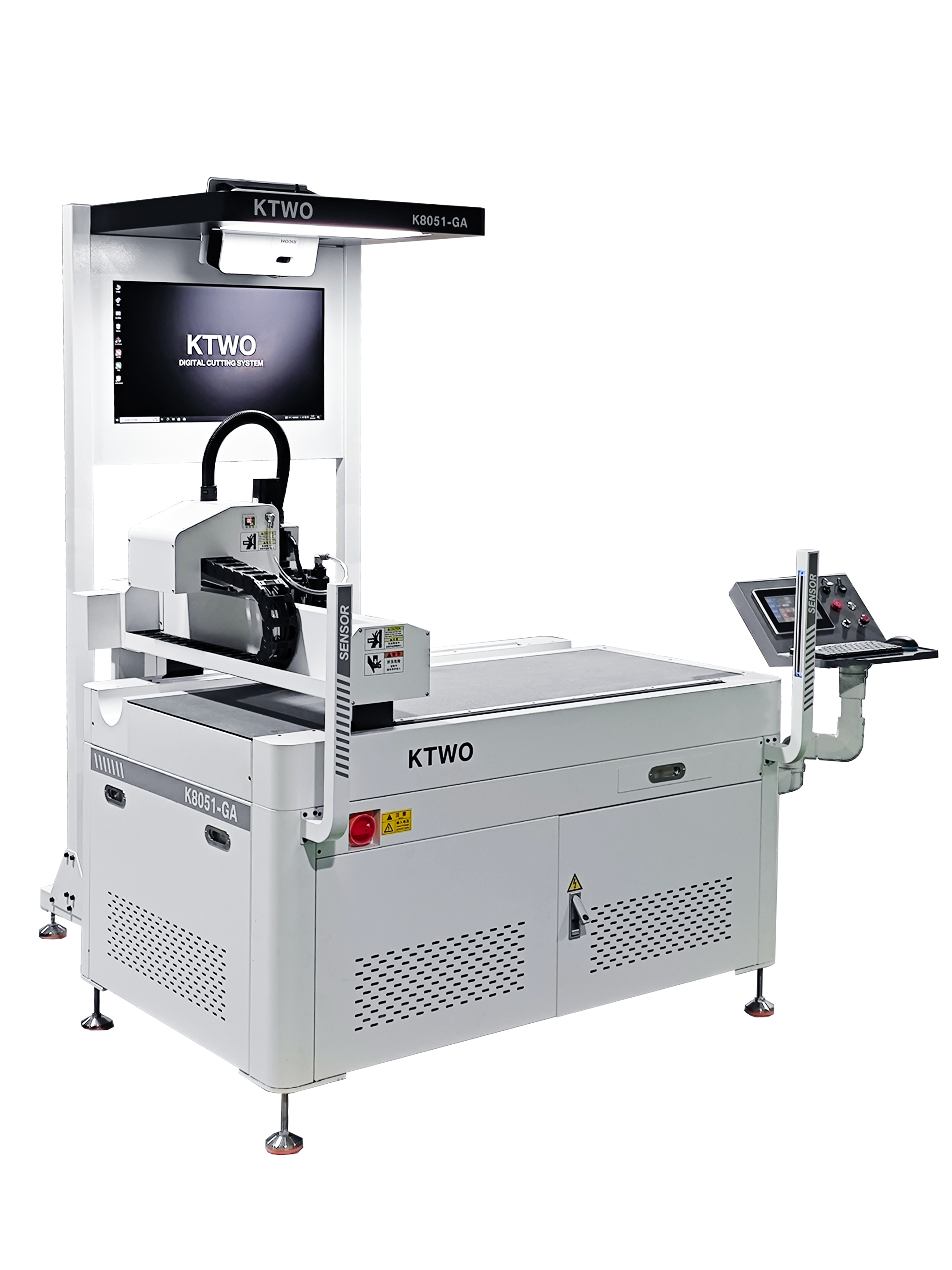

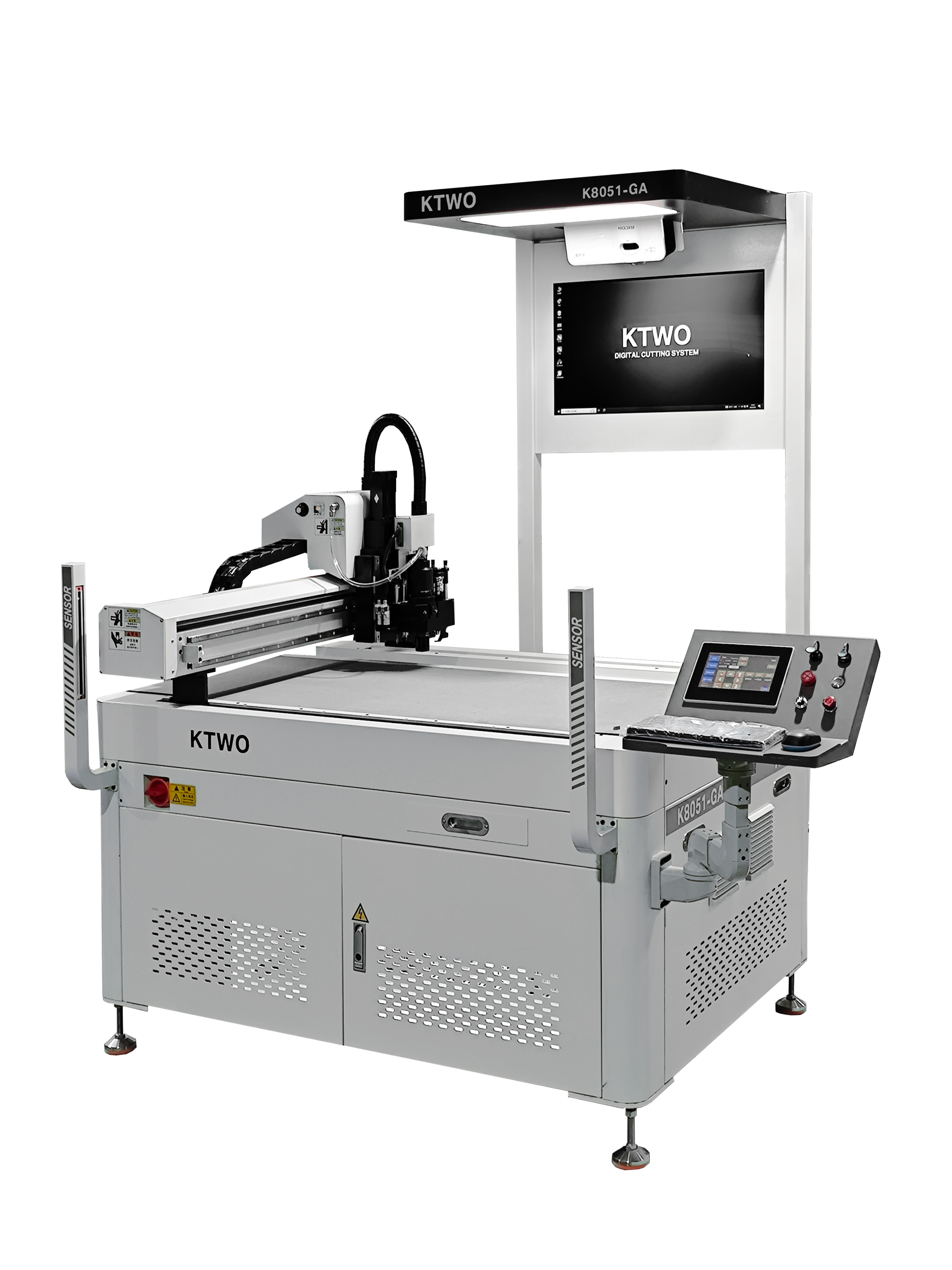

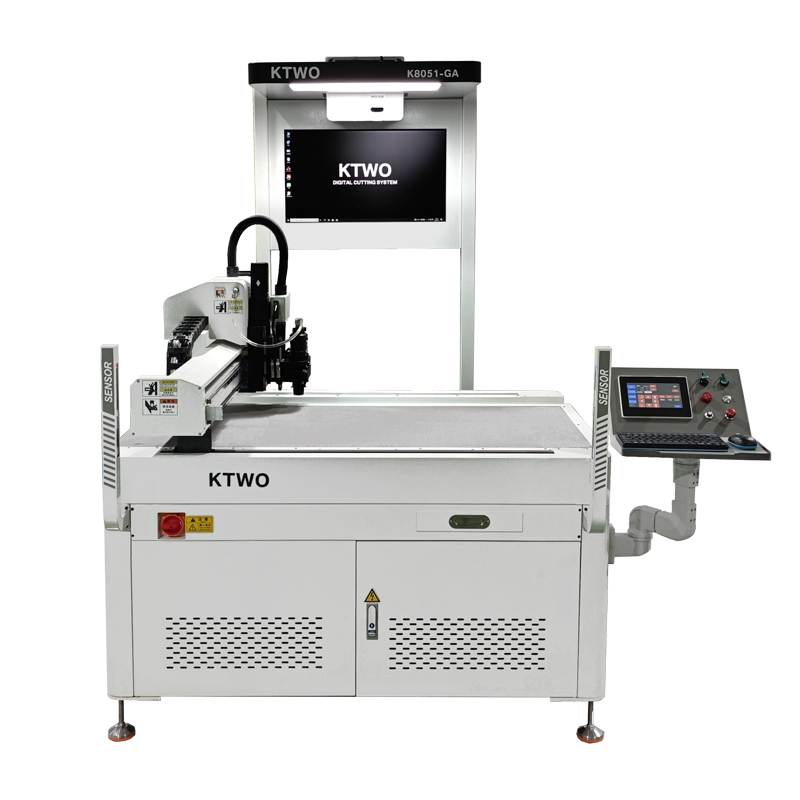

Model introduction
A vibration knife cutting machine specially designed for designers and studio users. It has concentrated the essence of core technology in one body. The body design is exquisite, with coil placement, and the material storage and processing flow is smoother. The device has strong adaptability to different environments and can easily adapt to various development scenarios, making it a cost-effective preferred model.
Key features
● Small size body design, suitable for studio scenes.
● Dual aperture punching knife, marking pen, fixed needle hole, cutting and other four function sets.
● Intelligent cutting system, stable and efficient.
● Cantilever control panel, adjustable from multiple angles.
● Vacuum adsorption table, material fixation is more stable, avoiding cutting displacement.
● Designed an integrated coil material placement position, making coil processing more convenient.
● Optoelectronic protection device, safeguarding production safety.
● High flexibility guide chain is adopted, with strong flexibility.
● Image preview, dynamic display of layout effects, and real-time adjustment and optimization,Assist in precise cutting.
● High strength pneumatic drive, suitable for different needs of various flexible materials.
Technical parameters
|
Model K8051-GA |
|
|
Machine Weight |
550 KG |
|
Dimensions |
1860*1700*2200 MM |
|
Voltage |
220 V |
|
Power |
4 KW |
|
Operational dimensions |
900*500 MM |
|
Cutting depth |
7 MM |
|
Sharpening speed |
4000rpm |
|
Cutting speed |
Up to 300 mm/s |
|
Cutting precision |
0.1 MM |
|
Fan power |
2.2 KW |
|
Fixation method |
Vacuum adsorption |
|
File compatible format |
DXF/PLT/HFT/HPT/ST2/DWG/CUT |
|
File transfer method |
LAN/WLAN/USB |
