Model introduction

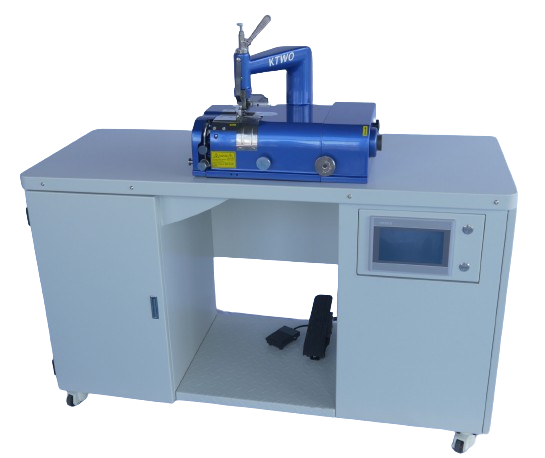

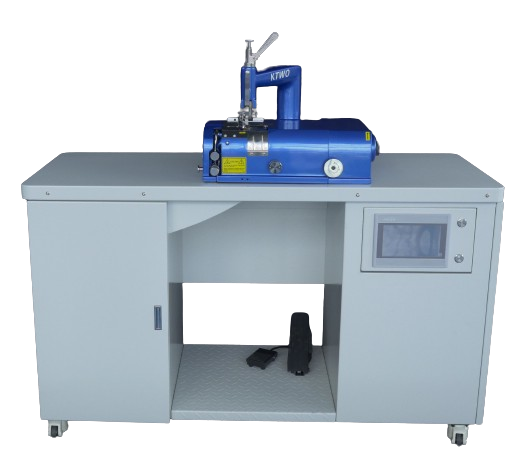

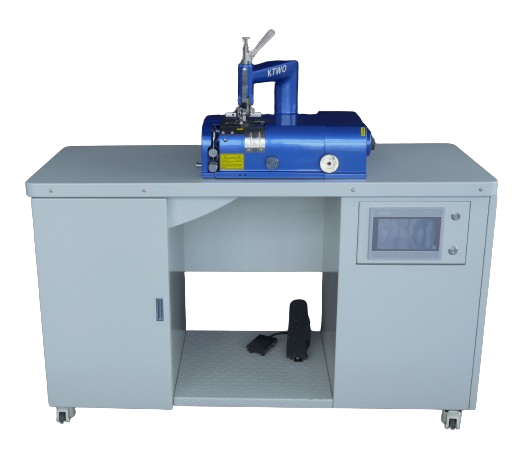

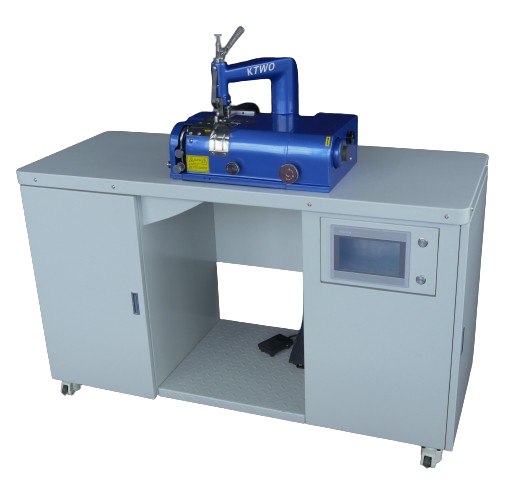

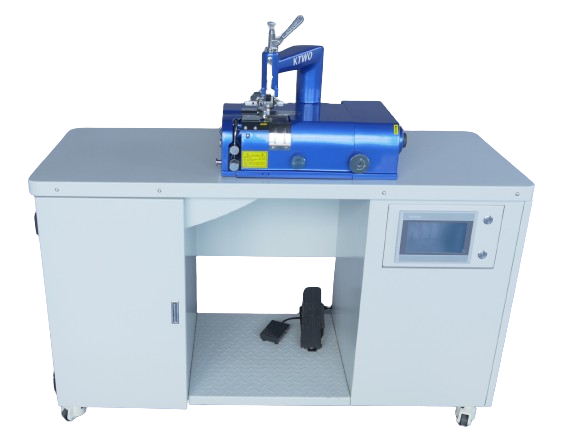

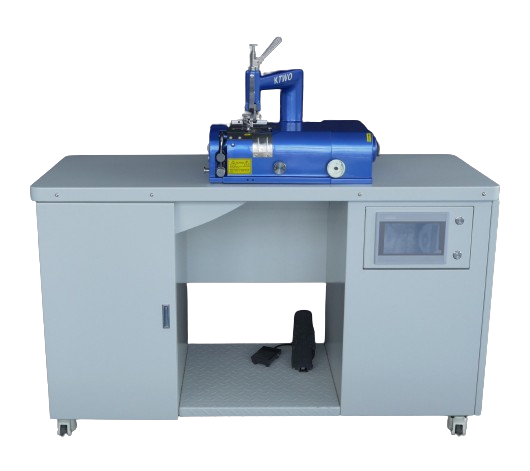

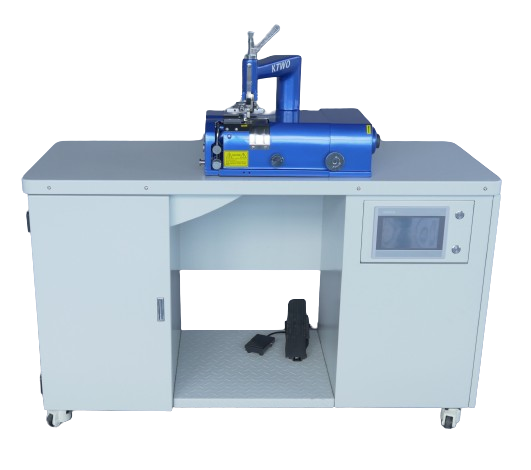

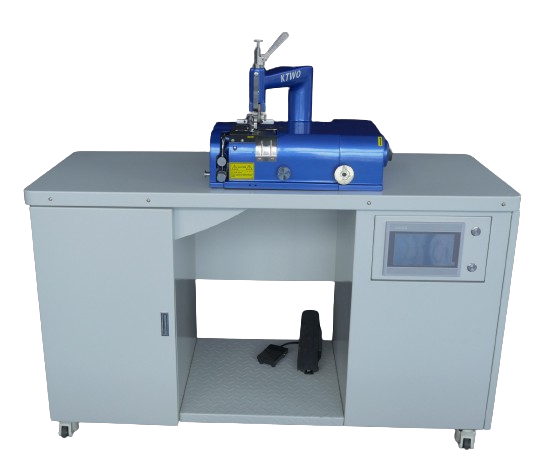

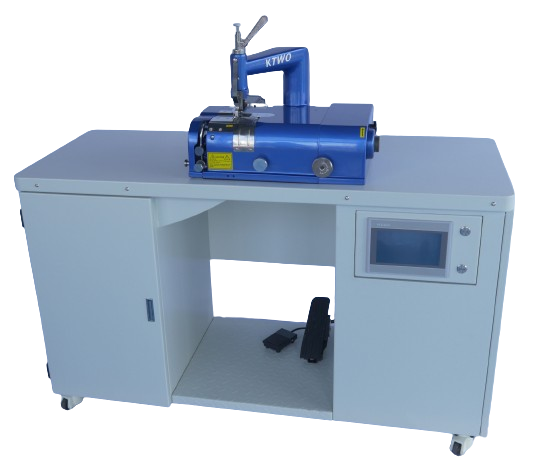

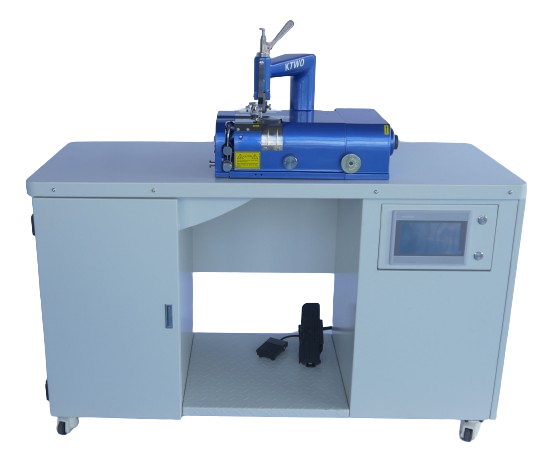

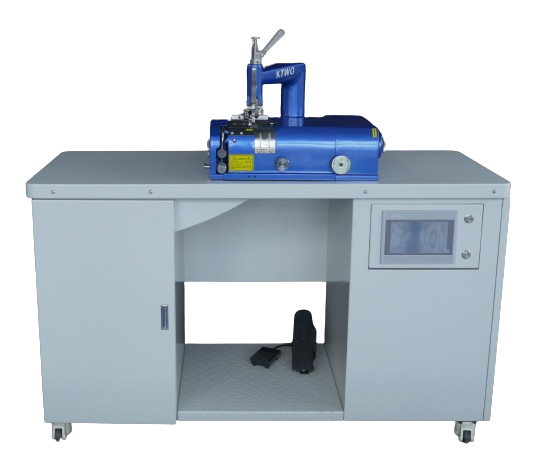

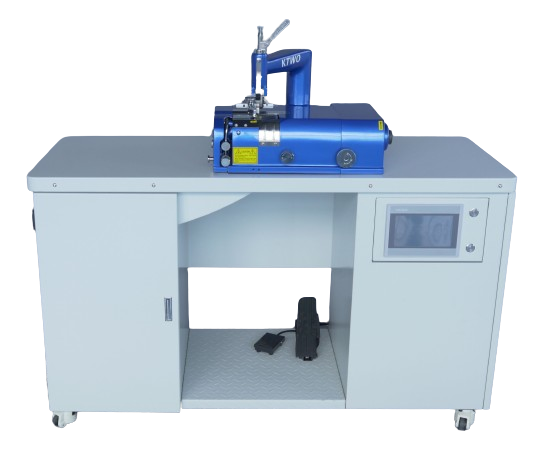

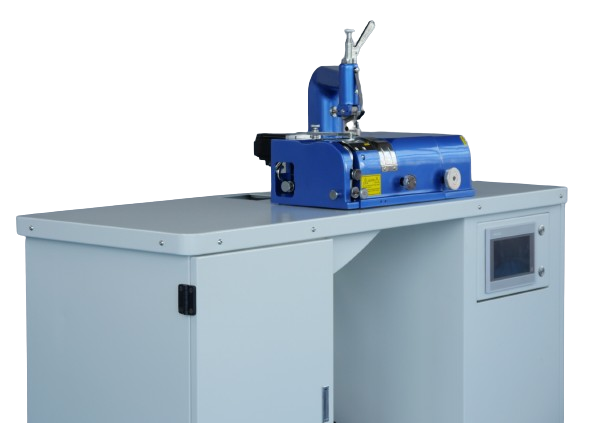

The K2C2-S model is the flagship model of the KTWO round knife thinning machine series, with a dual stepless speed regulation design that can handle thinning operations for various types of materials. Speed CNC control, easy and convenient to operate.
Key features
● The multifunctional touch screen adopts a storage design, which is easy to operate, simple and efficient.
● Integrated body design, equipped with advanced servo feeding system, ensuring constant torque output for both high and low speed feeding.
● Equipped with a built-in vacuum function, it can effectively remove waste and dust, prevent material jamming, and ensure a clean usage environment.
● The whole machine parts adopt high-precision machining technology. Durable and low noise.
● Equipped with KTWO's pioneering edge trimming function, it can directly input the required length for precise edge trimming.
● KTWO autonomous control program, stable and reliable.
● Digital dual infinite speed regulation can handle thinning of various types of materials.
● 7-inch touch screen, user-friendly control interface. No work experience is required to operate.
● There are three operation modes: automatic mode, pedal mode, and jog mode, which can effectively handle the trimming of various shapes of materials.
● PLC control, with high precision and stability.

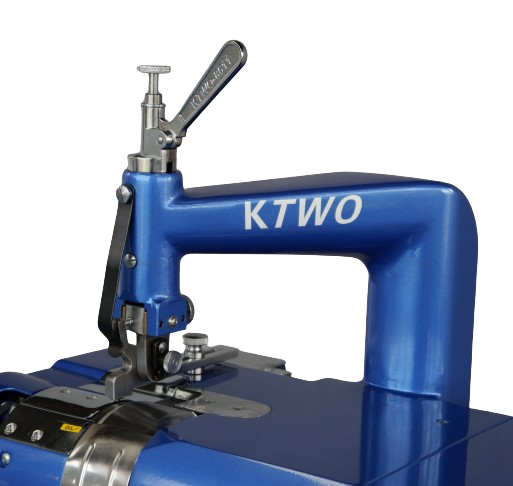

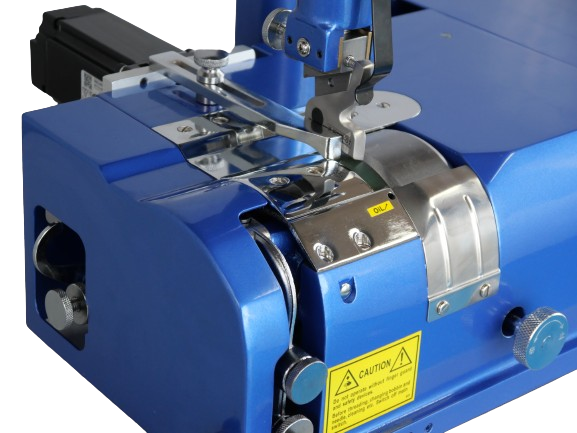

● Compatible with various special presser feet and modified accessories of KTWO, it can produce different edge thinning effects.
Technical parameters
|
Model K2C2-S |
|
|
Working voltage |
220V |
|
Model weight |
136KG |
|
Package weight |
168KG |
|
Model power |
1.4KW |
|
Model size |
130*53*118（cm） |
|
Minimum thinning thickness |
0.05mm |
|
Drive form |
Dual drive type |
|
Maximum thinning width |
50mm |
Optional
Various special presser feet
Feeding slide table
